Indus Tumble Blast Conveyor Belts are engineered for one of the most critical operations of tumble blasting where the articles/units are hit with fine metal grits with high pressure blasting equipment.
We have developed these belts for the OEM’s in SHOT BLASTING industry.
These belts are customised as per the sizes designed by the OEM’s and are designed for high performance results.

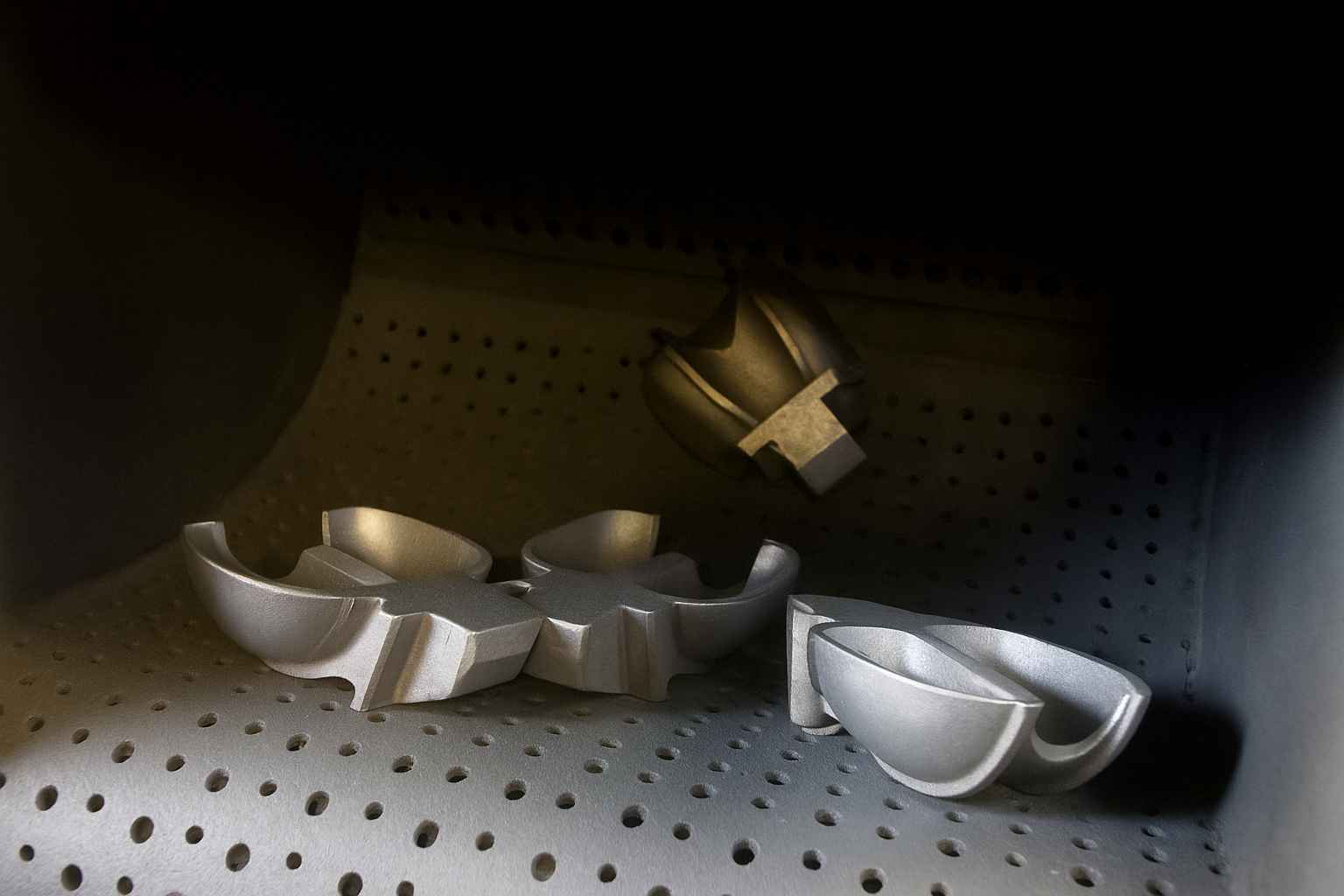

The articles/parts are sand blasted /shot blasted by tumbling those on a conveyor belt.
Salient Features:
- Excellent Resistance to abrasion.
- Good Resistance to Heat.
- Excellent Resistance to High impacts of grits.
- Made with special guiding ribs to sustain longitudinal & transverse impulses during tumbling process.
- Made with special Jointless design for longer life.
Product Features
| Standard Widths | Up to 2200mm (86″) |
| Type Of Fabric | EP / NN |
| Breaker Fabric Ply | Optional / As per customer requirement. |
| Standard Belt Rating | 200 kN/m (110 PIW) to 1000 kN/m (571 PIW). |
| No. of Ply’s | 1 ply to 8 ply |
| Rubber Cover Thickness | 1mm (1/25″) to 25mm (1″) |
| Colour | Black |
| Edge | Cut Edge |
| Splicing Method | Available as Jointless/Endless Belts depending upon the belt length. |
| Cover Grades | Available in General Purpose Impact & Abrasion Resistant(M24, DIN-X, Y, HAR, SAR), Oil Resistant(OR), Heat Resistant(HR), Fire Resistant (FR)grades and combinations available on request. |
| Single Roll Length | As per customer requirement. |
| Standard Packing | Wrapping in HDPE sheets with Strapping. |
| Belt Identification Number | A unique BIN (Belt identification number) at every 10 meters (33′) |
