Transportation or conveying of lightweight materials like cartons, paper, glass, packaged goods etc., on flat or inclined surfaces, requires a special kind of belt.

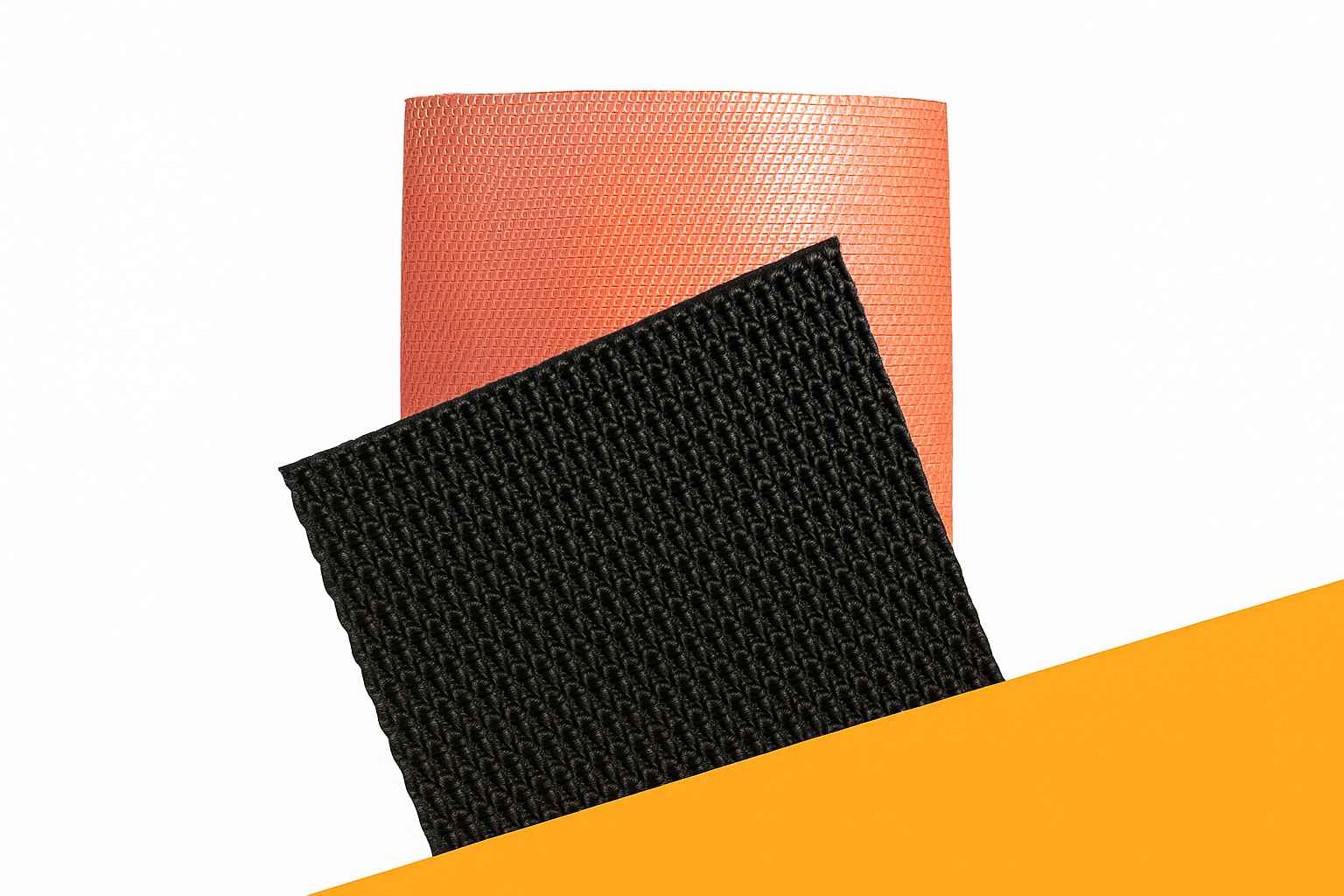

Having a ridged rubber surface on the top and either a bare back fabric or a regular rubber back, Indus Super Ridge Conveyor Belts are specially designed for this purpose. The ridges on the top cover offer a massive friction coefficient to ensure that the material being conveyed doesn’t slip or roll back.
Industry:
- Food Packaging Industry
- Industrial Applications
- Glass & Other Fragile Goods Manufacturing Industry.
- Bagging Plants
- Corrugated Box & Paper Industry
Product Features
| Standard Widths | Up to 1500mm (60”) |
| Type of Fabric | EP / NN |
| Standard Belt Rating | 100 kN/m (57 PIW) to 1000 kN/m (571 PIW) |
| No. of Ply’s | 1 ply to 4 ply |
| Rubber Cover Thickness | Top cover: Up to 5 mm (1/5″) | Bottom cover: Up to 3mm (1/8″) | Bare Back Surface also available. |
| Colour | Black |
| Edge | Cut Edge |
| Splicing Method | Hot / Mechanical |
| Cover Grades | Available in General Purpose Impact & Abrasion Resistant (M24, DIN-X, Y , HAR, SAR), Oil Resistant(OR), Heat Resistant(HR), Fire Resistant (FR) grades and combinations available on request. |
| Single Roll length | 200 Meters (650’) | Longer roll lengths available on request. |
| Standard Packing | Wrapping in HDPE sheets with Strapping. | (Wooden Crate / Metal Crate packing is available on request) |
| Belt Identification Number | A unique BIN (Belt Identification Number) at every 10 meters (33’) |
