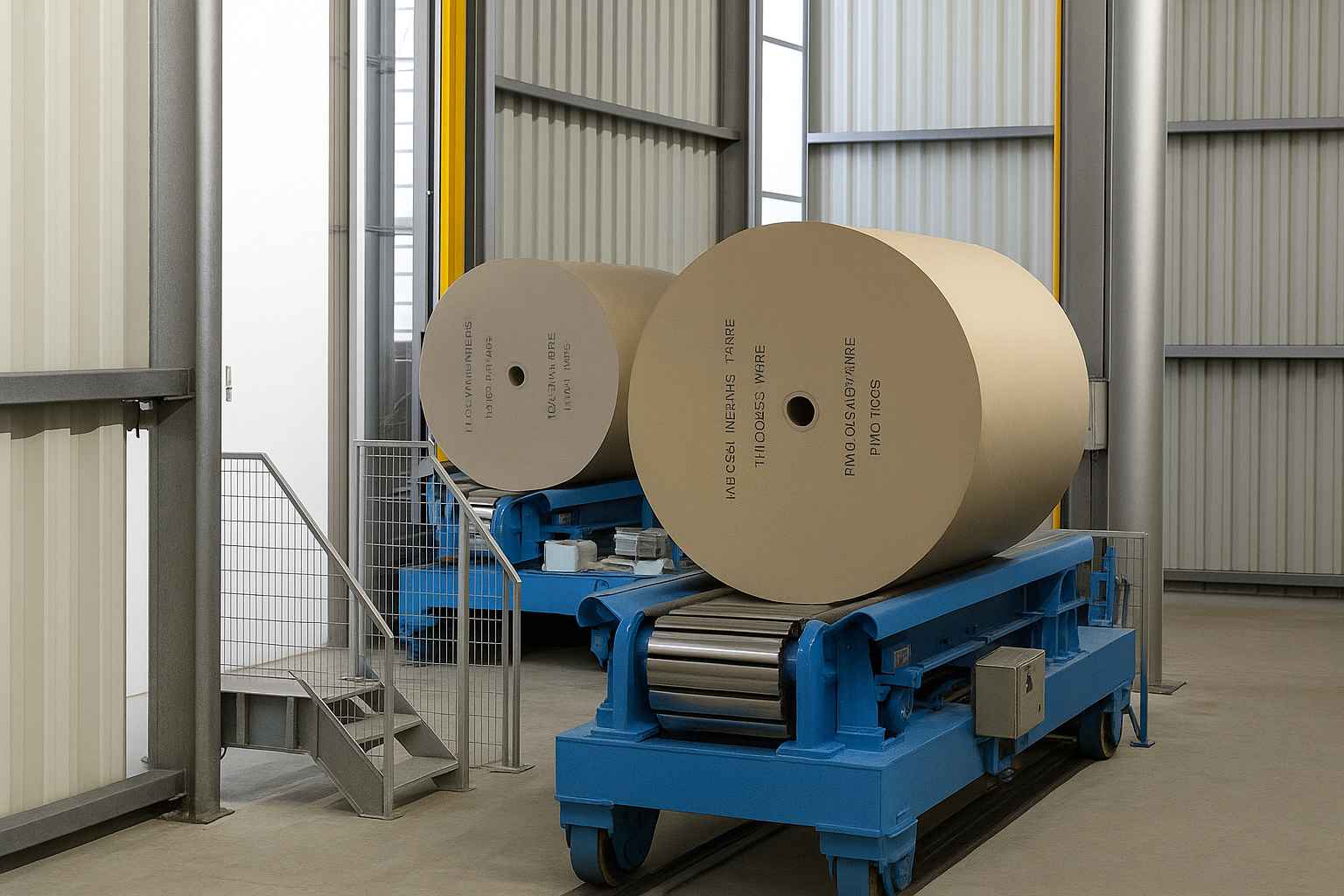

Transportation or conveying of paper reels requires a special kind of belt.
Indus Paper Reel Conveyor Belts are specially designed with a moulded radius on the top surface of the belt
This facilitates steady handling & transportation of the paper roll.
Indus Paper Reel Conveyor Belt with its unique design can also be used to convey any product in the shape of a Barrel/Roll/Reel
Salient Features:
- Excellent Resistance to abrasion.
- Good Resistance to Heat.
- Excellent Resistance to High impacts of grits.
- Made with special guiding ribs to sustain longitudinal & transverse impulses during tumbling process.
- Made with special Jointless design for longer life.
Product Features
| Standard Widths | Up to 2200mm (86″) |
| Type Of Fabric | EP / NN |
| Breaker Fabric Ply | Optional / As per customer requirement. |
| Standard Belt Rating | 200 kN/m (110 PIW) to 1000 kN/m (571 PIW). |
| No. of Ply’s | 1 ply to 8 ply |
| Rubber Cover Thickness | 1mm (1/25″) to 25mm (1″) |
| Colour | Black |
| Edge | Cut Edge |
| Splicing Method | Available as Jointless/Endless Belts depending upon the belt length. |
| Cover Grades | Available in General Purpose Impact & Abrasion Resistant(M24, DIN-X, Y, HAR, SAR), Oil Resistant(OR), Heat Resistant(HR), Fire Resistant (FR)grades and combinations available on request. |
| Single Roll Length | As per customer requirement. |
| Standard Packing | Wrapping in HDPE sheets with Strapping. |
| Belt Identification Number | A unique BIN (Belt identification number) at every 10 meters (33′) |
